When Does Index Size Change Index Choice?

Size Matters?

One thing I hear a lot is that the optimizer will take the size of an index into account when choosing which one to use.

The tl;dr here is that it may make more of a difference when it comes to index width  (think the number of columns in an index) than it does the actual size in MB or GB of the index.

You can usually observe this behavior with COUNT(*) queries.

If you have a table with a clustered index, and then a narrow(er) nonclustered index, it’s generally more efficient to just get a universal count from the nonclustered index because it’s less work to read.

This will likely change if you COUNT(a column not in the nonclustered index), but hey.

A column in the index is worth two key lookups.

Or something.

Queen Size

Let’s skip a lot of the nonsense! For once.

If I create a modest table with 1 million rows and a couple indexes with the key columns flipped, I can get a good starting test.

I’m only going to be running two queries. One that does a direct equality, and one that looks for a hundred year range.

To spice things up, we’ll fragment the index in a way that may eventually cause problems: we’ll add a bunch of empty space.

We’ll do this with the magic of fill factor.

Pay careful attention here: we’re adding 10% free space to every page in the index incrementally.

We’re doing this to the index that has order_date as the first column, which is also the column that both of our queries are predicated on.

That makes this index the more efficient choice. The other nonclustered index on this table has order_date second, which means we’d essentially have to read every page — the pages with the date range we’re looking for aren’t guaranteed to all be together in order.

Technically they are, but the optimizer doesn’t know that.

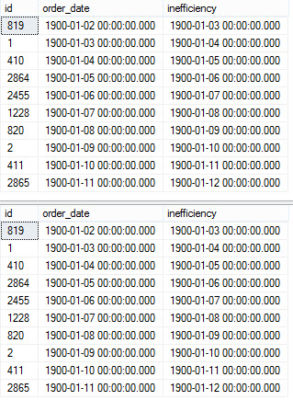

The way data is loaded, dates in the ‘inefficiency’ column are only one day ahead of dates in the order_date column.

Complicated Game

Ocean Motion

So what happens when we lower fill factor and run the equality query?

  • The nonclustered index with order_date first always gets picked. Even when I set fill factor to 1, meaning 99% of the page is empty.
  • The query never really does any more work, either. Every run takes 3ms, and does between 3-5 logical reads.

The range query is a bit more interesting. By more interesting, I mean that something finally changed.

But I had to drop fill factor down to 2% before the optimizer picked the other index.

Wanna see why?

Tag Team

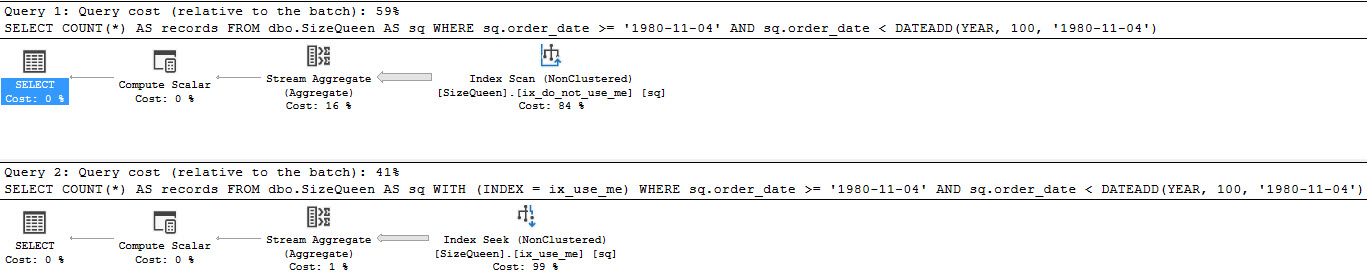

The first one chooses the less efficient index, with order_date second.

The second query is forced to use the other index where order_date is first, but where fill factor is set to 2%.

With the less efficient index at 100% fill factor, meaning every single page is full of data, here’s what we get from stats time and IO.

About 5000 reads, and about 100ms of CPU time.

The forced index query gives us this:

So, about 270 more logical reads, but no CPU time.

Huh.

Oddballs

No, not that

I don’t care much about the batch cost here, or 100ms of CPU time. That’s trivial in nearly every scenario outside of, like, anime gif rendering, where every nonsecond counts.

I’m looking at those reads.

It took the ‘good’ index being 98% free space for the number of reads to surpass a 100% full index with the key columns switched.

Now, 5000 reads isn’t much. If we do 5000 reads every million rows, and our table gets up to 100 million rows, we’ll do 500,000 reads.

If we have the wrong index.

With the right indexes in place, fragmentation becomes much less of a concern.

Thanks for reading!

Previous Post
“But It Worked in Development!” – 3 Hard Performance Problems
Next Post
[Video] The Junior DBA Workout Plan

3 Comments. Leave new

  • Bjarne Petterson
    February 16, 2018 3:43 am

    I think you missed your own point since this query will of cource not use the other index. Why should the optimizer be so silly that it choose the index with the wrong field as the first one?
    Both queries will use ix_use_me and then I don´t see the purpose of this exercise?

    SELECT COUNT(*) AS records
    FROM dbo.SizeQueen AS sq –This uses the other index on its own
    WHERE sq.order_date >= ‘1980-11-04’
    AND sq.order_date < DATEADD(YEAR, 100, '1980-11-04')

    Reply
  • Vinícius Napoleão Dantas Ribeiro
    February 16, 2018 1:21 pm

    Bjarne Petterson, I think you need to execute the fill factor to 2% at the index ix_use_me, and than execute the query that looks for a hundred year range.
    And you will se that de change of the optimizer….
    The fellas, just don’t put the script that change the fill factor.
    Abraços!
