Measuring Performance Can Slow SQL Server Down

I’ve written a terrible query. It might be the worst query in the world. Sure, there are other queries that may be slower, but this query is terrible and elegantly short.

The query is gloriously bad for a two reasons:

  1. It’s incredibly inefficient in the way it uses a scalar function
  2. Observing the query’s performance can make it much, much slower

Don’t believe me on #2? Let’s take a look!

Here’s the query:

The query uses a restored copy of the StackOverflow database, and the following (terrible) function and related index.

Now, let’s run it and see how long it takes. All my tests are running against a virtual machine on a laptop with 6GB of RAM, SSD storage, and no other activity running. I ran each test a few times and made sure I got consistent results.

SQL Server Dynamic Management Views (DMVs)

The easiest way to measure performance stats for a query using the dynamic management views is to dump the procedure cache, run the query, and then run our free tool, sp_BlitzCache®.

Note that I’m dumping the ENTIRE execution plan cache– I’m running this on a dedicated test instance, so my FREEPROCCACHE can’t harm anyone else.

Here’s the duration and CPU from the output:

blitzcache-results

This gives me a lot of info — my total duration is over 14 seconds. Of that, 9+ seconds were the SELECT statement from inside the scalar function. And by the way, that executed 2.3 million times. WHOA. 2.3 million times? Yep, that’s how bad my query is.

Extended Events (XEvents)

I can easily run an Extended Events trace against my session using our tool, sp_BlitzTrace™ on SQL Server 2012 and higher. Here’s the syntax to do that:

According to the trace, the query’s duration and CPU time are in the same ballpark as we saw before:

sp_BlitzTrace-Output

But I only have one line here– that’s because by default sp_BlitzTrace™ only collects sql_batch_completed and does not collect statement level completion events. You can turn that on, but remember how the dynamic management views told us the scalar function was executed 2.3 million times?

If you capture sp_statement_completed, that means capturing 2.3 million events. Which means your trace starts churning large amounts of data to the file system. And yes, if you collect the statement level stuff, you’ll slow the query down — and besides, querying the trace files is just awful.

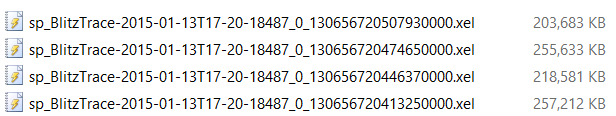

I generated these trace files pretty quickly by collecting statement level events for this terrible query.

How to generate 1GB of XEvents trace files with a single SELECT statement… oops!

STATISTICS TIME AND STATISTICS IO

Another very common way to measure query performance is to turn on STATISTICS TIME and STATISTICS IO. I’m lazy, so I usually do these in a single statement, like this:

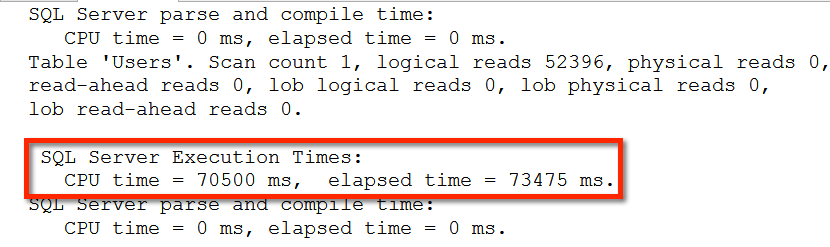

Here’s how that performed:

statistics-io-time

This performance is consistent across multiple executions. I am not making this up.

Wait just a second– those times were different!

Yep, there’s something weird about these numbers. Let’s sum up the CPU time measurements:

  • Dynamic Management Views via sp_BlitzCache®:~14 seconds
  • XEvents sql_batch_completed via sp_BlitzTrace™: ~14 seconds
  • SET STATISTICS IO, TIME ON: 70 + seconds
  • XEvents sp_statement_completed: gave up after one query generated 1GB of trace data

Dang, this stuff is complicated.

I still like STATISTICS IO and STATISTICS TIME. I do also like sometimes looking at statement level trace data, too! But with any method of measuring performance, I try to be aware that watching what’s going on can impact the results I’m seeing.

This post was inspired by Grant Fritchey’s recent post. If you’ve got your own story about “the observer effect” slowing things down, I’d love to hear it, too!

Brent Says: Whenever I’m there to watch a client’s server, it seems to go faster, and they’re mad because the problem is gone. Hmm.

Previous Post
Dropping an Offline Database in SQL Server
Next Post
“It’s Slow” Is Not A Metric

9 Comments. Leave new

  • Some people incorrectly call the observer effect the Heisenberg Uncertainty Principle, which is really defined as the more precise a particle’s position is measured the less you really know about its momentum. But that’s kinda close enough to the observer effect for me.

    Therefore I like to call events like you describe as Heisenbugs. They act differently the more you measure them.

  • I have always found functions to be the bane of existence, in some ways even worse than cursors. If I really need a function I will write it in C and add the function to my typical DLL library of such things and reference those functions to SQL Server. A little complicated and all, but sending the processing outside of SQL Server and using a 4GL makes it worth it.

  • SET ANSI_NULLS ON
    SET QUOTED_IDENTIFIER ON
    GO
    CREATE VIEW [dbo].[mv_BadgesForUser] WITH SCHEMABINDING
    AS
    SELECT UserID, COUNT_BIG(*) AS BadgeCount
    FROM dbo.Badges
    GROUP BY UserID
    GO
    SET ARITHABORT ON
    SET CONCAT_NULL_YIELDS_NULL ON
    SET QUOTED_IDENTIFIER ON
    SET ANSI_NULLS ON
    SET ANSI_PADDING ON
    SET ANSI_WARNINGS ON
    SET NUMERIC_ROUNDABORT OFF
    GO
    CREATE UNIQUE CLUSTERED INDEX [CIX_BadgesForUser] ON [dbo].[mv_BadgesForUser]
    (
    [UserID] ASC
    )
    GO
    USE [Scratch]
    GO
    CREATE UNIQUE NONCLUSTERED INDEX [IX_BadgeCount] ON [dbo].[mv_BadgesForUser]
    (
    [BadgeCount] DESC,
    [UserID] ASC
    )
    GO
    SELECT TOP 10
    Id = UserID, BadgeCount
    FROM [dbo].[mv_BadgesForUser]
    WHERE BadgeCount > 50
    ORDER BY BadgeCount DESC

    /* There, I fixed that for you */

    • Joseph LaBonde
      March 27, 2015 11:37 am

      A fix that doesn’t require any database changes and won’t impact DML statements is to replace the function with a Temp Table and then join it to the users table. This used 1/5th the logical reads.

      CREATE TABLE #BadgeCountForUser (UserId int, BadgeCountForUser int)
      INSERT INTO #BadgeCountForUser
      SELECT UserId, COUNT(*)
      FROM dbo.Badges
      GROUP BY UserId

      SELECT Id, BadgeCountForUser
      FROM dbo.Users
      JOIN dbo.#BadgeCountForUser ON Users.Id = #BadgeCountForUser.UserId
      WHERE BadgeCountForUser > 50
      ORDER BY BadgeCountForUser DESC
      GO

  • A similar observer effect for scalar UDFs was written about by Jeff Moden here: http://www.sqlservercentral.com/articles/T-SQL/91724/

    I thought it was particularly interesting given the bad name they have by people taking these kind of measurements. Heh.

    Thanks for the article. I’ve been having fun with BlitzTrace, also, while I try to suck less at XE on my own.

  • Most surely had this happen last week. I am trying to introduce database table and index compression so I had the analyst run some tests with uncompressed tables and had a simple profiler trace running. This produced millions of rows of output because the way the process was coded. Then we did the same tests with compressed data and it was three times faster. I didn’t have a trace running this time. I had a hard time thinking the results were reasonable thinking that maybe data being in cache might have caused the difference (the process was getting data from another database than the one I had compressed). So I had the tests rerun with the compressed run first and the differences were a lot less. Then I read this post and understood.

    Chris
